Home > Induction Melting Furnace >

steel melting induction furnace

Shenzhen HFD Industry Co,. Ltd

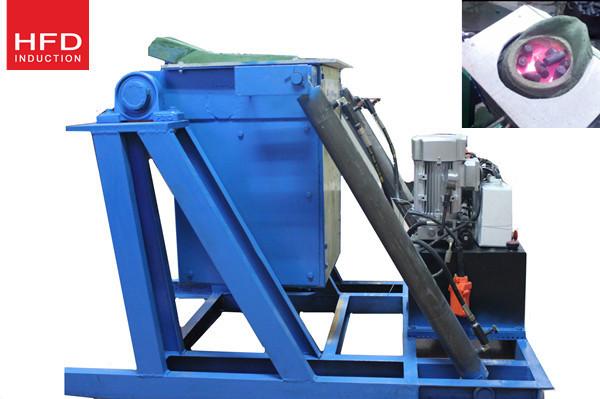

steel melting induction furnace

Contact Now

model HFM-002
maximum voltage scope 25kw
input voltage scope 70-550V
output oscillating frequency 1-20KHZ based on customer requirement
input voltage frequency three phase 380V±20% 50-60HZ
heating,retain current 100% 24H
Weight (kg) 28
volume L*W*H (cm) 55*29*50
Melting furnace
models max input power/kw capacity each time
ferrous metal aluminum copper gold silver bronze
25 8kg 6kg 20kg

GOOD PERFORMANCE ON MELTING:

M.F. melting machines can be used for melting steel, stainless steel , brass, aluminum, gold silver etc.Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.Wide frequency range from1KHZ-20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.

When melting, the cold furnace need 50-60minutes.The hot furnace need 20-30 minutes.

1.The machine have constant current and constant frequency control function, it can improve heating efficiency to save more energy.

2.Easy assembling.the machine connecting cable all have marks to clarify also have files and video for assembling. It just need to connect power and water for chilling can finish the assembling, only takes couple of minutes. No need professional assembling engineer,client can save more time ,energy and cost.

3.Easy to operate. Heating current and heat preservation function can adjust separately. Provide video guiding for whole operation.

4.The machine have timer function. The heating speed(heating time) and heat preservation time can be digitally set up.

5.The machine has fault analyzing and alarm system. When over pressure, over flow, over temperature,water fail etc fault happened, the process will protect main components in a regular time. The machine can have fault alarm light, easy for client to detect when fault happened.

6.100% full load, can continuously working 24 hours.

7.Frequency auto tracing and adjust system, no need to adjust frequency frequently adjust when working.

8.Compact size. To meet the requirements for factory production , school teaching and laboratory use.

9.Energy saving. In full power range, have very high power factor and power source efficiency.compare to silicone carbide medium frequency, can save more than 20% energy.


Quality steel melting induction furnace wholesale

steel melting induction furnace Images
